FDB016N04AL7
- Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench?
Part Status : Discontinued at Digi-Key
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.6 mOhm @ 80A, 10V
Vgs(th) (Max) @ Id : 3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 167nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 11600pF @ 25V
Power Dissipation (Max) : 283W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount

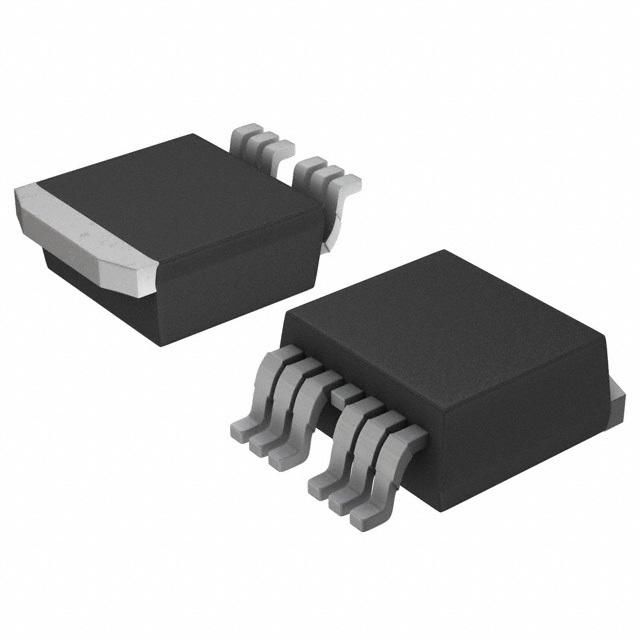

Supplier Device Package : D2PAK (TO-263)
Package / Case : TO-263-7, D2Pak (6 Leads + Tab)
