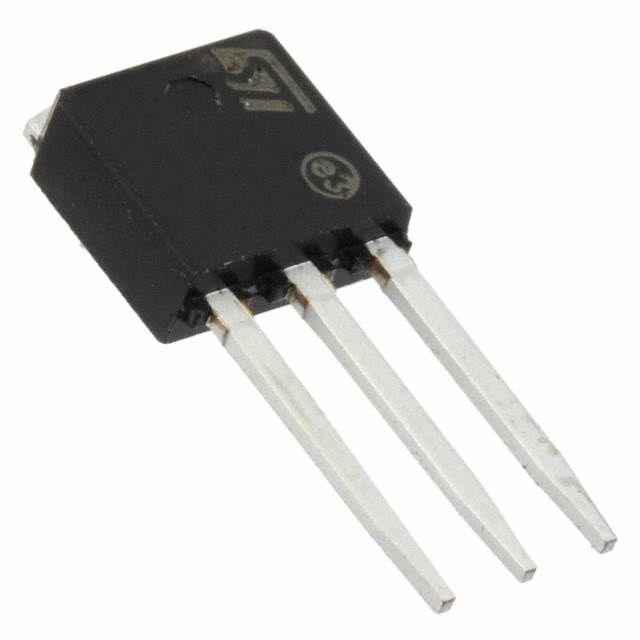

STU60N3LH5
- Manufacturer : STMicroelectronics
Packaging : Tube
Series : STripFET? V
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 8.4 mOhm @ 24A, 10V
Vgs(th) (Max) @ Id : 3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 8.8nC @ 5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1620pF @ 25V
Power Dissipation (Max) : 60W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : I-PAK
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
