CSD13202Q2
- Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 12V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 9.3 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 6.6nC @ 4.5V
Vgs (Max) : ±8V
Input Capacitance (Ciss) (Max) @ Vds : 997pF @ 6V
Power Dissipation (Max) : 2.7W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 6-WSON (2x2)

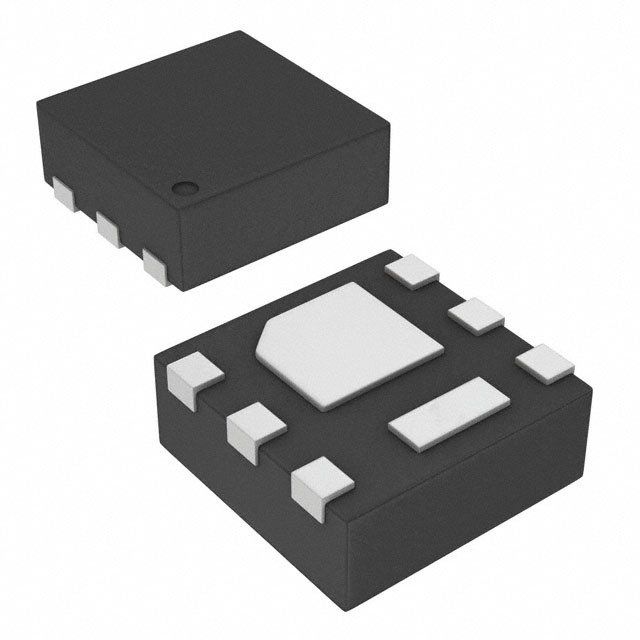

Package / Case : 6-VDFN Exposed Pad
